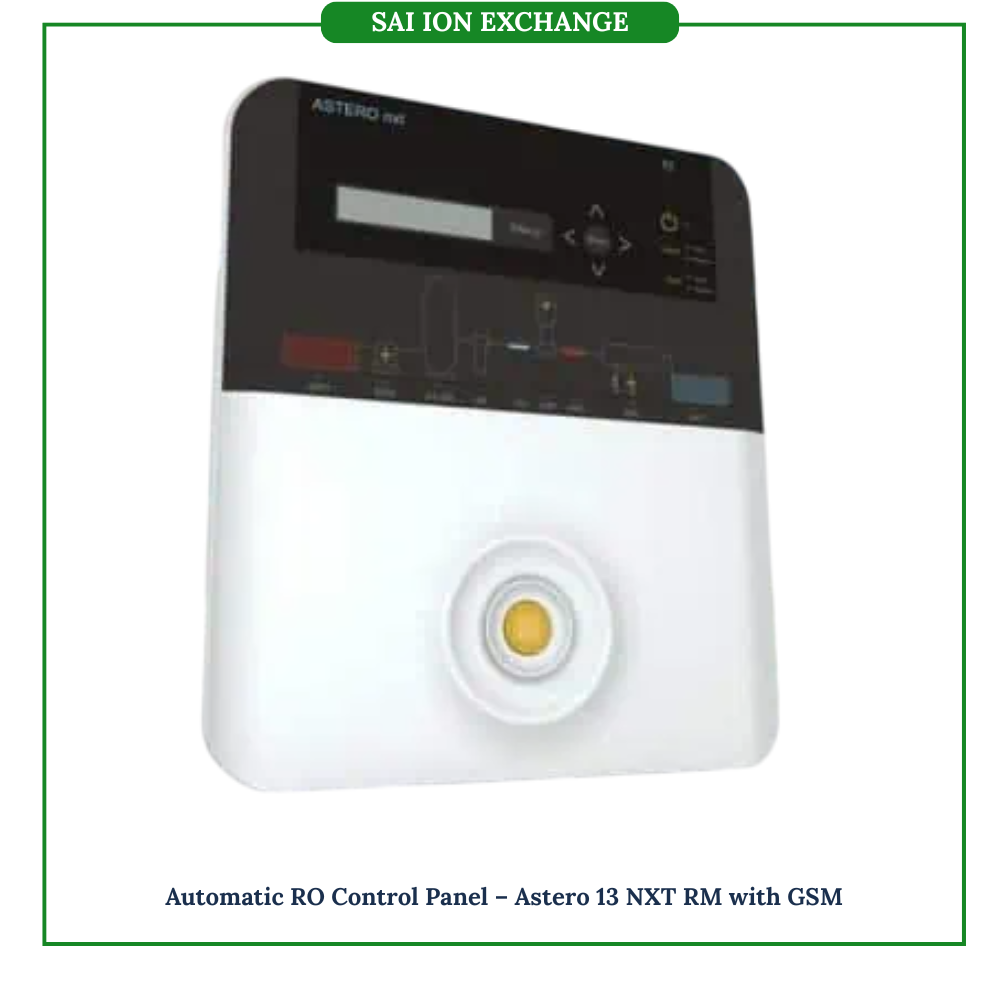

Automatic RO Control Panel – Astero 13 NXT RM with GSM

⚙️ Automatic RO Control Panel – Astero 13 NXT RM with GSM (Embark)

Advanced Microprocessor-Based RO Controller with Real-Time SMS Monitoring & Alerts

Product Overview:

The Astero 13 NXT RM with GSM is a microprocessor-based RO control panel designed for complete plant automation with real-time monitoring via SMS alerts. This Plug & Play panel comes pre-programmed with RO logic, ensuring smooth and safe operation.

The built-in GSM modem allows remote monitoring by sending plant status and fault alerts to up to 3 mobile numbers. It offers real-time SMS updates on critical parameters such as TDS, flow rates, pump currents, and plant status.

Key Features & Benefits:

• Complete RO Logic Pre-Programmed:

  • Plug & Play operation with RO logic pre-installed.

• Mimic Diagram with 6 LEDs:

  • Clear visual representation of I/O status.

• 16×2 Alphanumeric LCD Display:

  • Real-time monitoring with a user-friendly keypad interface.

• Automated Flushing Cycle:

  • Flushes the membrane:

    • During start-up

    • During shutdown

    • At preset intervals

  • Prevents scaling and extends membrane life.

• Filter Backwash & Service Notifications:

  • Alerts for filter backwash and plant service due based on runtime.

• Time-Settable Lock:

  • Prevents frequent pump cycling and ensures stable operation.

• Motor Protection Features:

  • Safeguards against:

    • Overload

    • Single Phasing

    • Dry Running

• Auto/Manual Operation:

  • Operates in manual mode with motor protection still active.

• Flow Rate Indicator with Totalizer:

  • Real-time flow monitoring with a cumulative totalizer.

• Operation Hour Counter:

  • Tracks the plant’s runtime for maintenance planning.

• Conductivity/TDS Indicator with Tripping:

  • In-built conductivity/TDS sensor with auto-tripping on high levels.

• Auto-Multiport Valve Compatibility:

  • Equipped to control auto-multiport valves in pretreatment.

• Password-Protected Settings:

  • Prevents unauthorized access and accidental modifications.

• GSM Modem for Remote Monitoring:

  • Sends real-time plant status & fault alerts to up to 3 mobile numbers.

  • User-configurable SMS frequency & mobile numbers.

📲 Real-Time SMS Monitoring & Alerts:

Plant Status Parameters Sent via SMS:

• Conductivity/TDS

• RO Permeate Volume

• RO Operation Hour

• High-Pressure Pump Current

• RO Permeate Flow Rate

• RO Inlet Flow Rate

• Feed Pump Current

• Overall Plant Status

Fault Alerts with Auto-Tripping:

• 🚫 High TDS/Conductivity

• 🚫 Low Pressure Trip

• 🚫 Treated Water Tank Full

• 🚫 RWP Dry Running, Single Phasing & Overload

• 🚫 Voltage Trip (Under/Over)

• 🚫 High Pressure Fault

• 🚫 Dosing Tank Level Low

• 🚫 HPP Dry Running, Single Phasing & Overload

📩 User receives real-time SMS updates with site name and plant status frequently.
⚙️ Frequency & mobile numbers are configurable by the user.

⚙️ Specifications:

• Model: Astero 13 NXT RM with GSM (Embark)

• Input Voltage: 230 VAC

• Output for Raw Water Pump (RWP):

  • Single Phase – 1.5 KW

• Output for High-Pressure Pump (HPP):

  • Three Phase – 4 KW

• Display:

  • 16×2 Alphanumeric LCD display with keypad for programming

• Motor Protection:

  • Overload, Single Phasing & Dry Running Protection

• Flow Rate Indicator:

  • Real-time flow monitoring with totalizer

• Conductivity/TDS Indicator:

  • Auto-tripping on high TDS levels

• Notifications:

  • Filter backwash & service due alerts

• GSM Modem:

  • SMS alerts for plant status & faults

  • Supports up to 3 mobile numbers

• Wiring:

  • Larger power terminals for easy wiring

  • Removable input terminals for simplified connections

💡 Applications:

• 🌊 RO Water Treatment Plants:

  • Ideal for industrial & commercial RO systems.

• 🏭 Industrial Water Treatment:

  • Ensures smooth & reliable operation.

• 💧 Commercial RO Plants:

  • Automates & protects the entire system.

• 🛠️ Water Purification Units:

  • Improves efficiency & safety.

• 📡 Remote Monitoring:

  • Real-time updates via SMS to multiple mobile numbers.

🚀 Why Choose Astero 13 NXT RM with GSM?

✔️ Pre-Programmed RO Logic:

• Plug & Play setup with complete automation.
  ✔️ Real-Time SMS Alerts:

• Remote monitoring of plant status & faults.
  ✔️ Automated Flushing:

• Enhances membrane lifespan with periodic flushing.
  ✔️ Fault Protection:

• Safeguards against overload, phasing issues & dry running.
  ✔️ User-Friendly Interface:

• Easy-to-navigate display with password protection.
  ✔️ Service Notifications:

• Timely alerts for backwash & service due.
  ✔️ Compact & Durable:

• Robust design with easy wiring & installation.

product code : SIE2025032843
