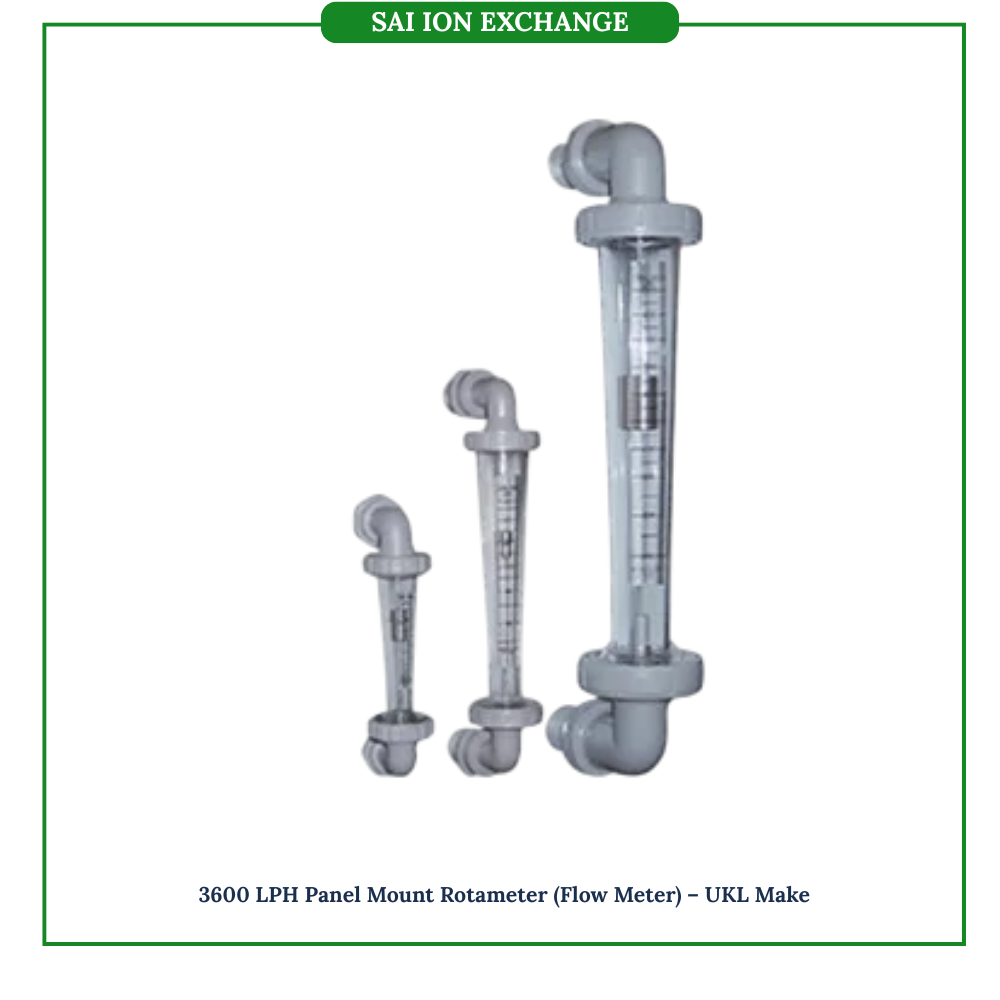

3600 LPH Panel Mount Rotameter (Flow Meter) – UKL Make

Description

3600 LPH Panel Mount Rotameter (Flow Meter) – UKL Make

Description: The Rotameter works on the variable area principle: as fluid flows through a tapered tube, it raises a float, increasing the area for fluid passage. The higher the flow, the higher the float is raised. The height of the float is directly proportional to the flow rate. The float reaches a stable position when the upward force from the fluid flow equals the downward gravitational force exerted by the weight of the float.

Salient Features:

• One-Piece Meter Body: Injection-molded tough polycarbonate for enhanced durability and strength.

• Quick Lock Half Union Adaptors: Provide secure and easy connections for seamless installation.

• Permanent Silk Screen Printing: Black ink printing ensures optimum contrast for better readability and durability.

• Enhanced Meter Readability: Precision textured light-admitting surface on the rear of the body for clearer and more accurate readings.

Technical Specifications:

• Meter Body Construction: Molded Polycarbonate

• Accuracy: ± 2% of Full Scale Deflection (FSD)

• End Connectors: Engineering Thermoplastic

• O-Ring Material: Nitrile

• Float Material: SS316/PVC

• Temperature Limit: 70 °C

• Pressure Limit: 10 Kg/cm²

• Inlet/Outlet Size: 3/4″

• Flow Range: 3600 LPH

product code : SIE20250331150
