Description

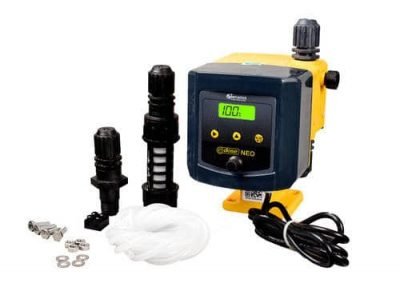

edose NEO Dosing Pump PVDF – 10 LPH | High-Performance Acid & Chemical Dosing
The edose NEO PVDF Dosing Pump (10 LPH) is a premium, high-precision dosing solution designed for harsh chemical applications. With robust PVDF construction, intelligent digital controls, and superior chemical resistance, this pump is the perfect choice for sulfuric acid, acid dosing, and aggressive chemical environments.
🔹 Key Features & Benefits
✅ Smart Digital Operation
-
Backlit LCD Display for easy readability in all lighting conditions.
-
User-friendly knob & digital display for precise dosing adjustments.
-
Password-protected settings to prevent unauthorized changes.
✅ Built for Harsh Chemical Applications
-
PVDF (Polyvinylidene Fluoride) dosing head ensures maximum resistance to corrosive chemicals.
-
Specially designed for Sulfuric Acid dosing and harsh chemical handling.
✅ Superior Performance & Safety
-
Adjustable frequency (up to 400 SPM) for controlled, accurate dosing.
-
Batch & Interval dosing modes for flexible operation.
-
Certified IP 65 enclosure – Fully dustproof & water-resistant.
-
Built-in Air Release Valve (ARV) with separate discharge to prevent chemical spills.
✅ Durability & Low Maintenance
-
PTFE diaphragm for extended life and superior chemical resistance.
-
Double ball NRV with PTFE seals prevents backflow and enhances precision.
-
Auto-resetting fuse protects against power fluctuations.
-
Compact, lightweight design for easy installation and portability.
🔹 Applications
✅ Ideal for:
-
Sulfuric Acid Dosing
-
Acid Dosing in Industrial Processes
-
Harsh Chemical Treatment Applications
-
Water Treatment & Effluent Treatment Plants
🔹 Technical Specifications
-
Dosing Rate @ 4 Kg/Cm²: 6 LPH & 10 LPH
-
Suction/Discharge Tubing: 4/6 mm
-
Frequency: Up to 400 SPM
-
Electrical: 230V AC, 50 Hz
-
Power Consumption: 30 Watts
🔹 What’s in the Box?
✔️ edose NEO PVDF Pump
✔️ Suction & Discharge Tubing
✔️ Suction Filter with NRV
✔️ Anti-Siphon Valve
✔️ Mounting Bolts
✔️ O&M Manual
⏳ Warranty: 1 Year Against Manufacturing Defects
🚀 Upgrade to the edose NEO PVDF Dosing Pump for unmatched reliability in aggressive chemical dosing!
product code : SIE20250331110
edose NEO Dosing Pump PVDF – 10 LPH | High-Performance Acid & Chemical Dosing
The edose NEO PVDF Dosing Pump (10 LPH) is a premium, high-precision dosing solution designed for harsh chemical applications. With robust PVDF construction, intelligent digital controls, and superior chemical resistance, this pump is the perfect choice for sulfuric acid, acid dosing, and aggressive chemical environments.
🔹 Key Features & Benefits
✅ Smart Digital Operation
-
Backlit LCD Display for easy readability in all lighting conditions.
-
User-friendly knob & digital display for precise dosing adjustments.
-
Password-protected settings to prevent unauthorized changes.
✅ Built for Harsh Chemical Applications
-
PVDF (Polyvinylidene Fluoride) dosing head ensures maximum resistance to corrosive chemicals.
-
Specially designed for Sulfuric Acid dosing and harsh chemical handling.
✅ Superior Performance & Safety
-
Adjustable frequency (up to 400 SPM) for controlled, accurate dosing.
-
Batch & Interval dosing modes for flexible operation.
-
Certified IP 65 enclosure – Fully dustproof & water-resistant.
-
Built-in Air Release Valve (ARV) with separate discharge to prevent chemical spills.
✅ Durability & Low Maintenance
-
PTFE diaphragm for extended life and superior chemical resistance.
-
Double ball NRV with PTFE seals prevents backflow and enhances precision.
-
Auto-resetting fuse protects against power fluctuations.
-
Compact, lightweight design for easy installation and portability.
🔹 Applications
✅ Ideal for:
-
Sulfuric Acid Dosing
-
Acid Dosing in Industrial Processes
-
Harsh Chemical Treatment Applications
-
Water Treatment & Effluent Treatment Plants
🔹 Technical Specifications
-
Dosing Rate @ 4 Kg/Cm²: 6 LPH & 10 LPH
-
Suction/Discharge Tubing: 4/6 mm
-
Frequency: Up to 400 SPM
-
Electrical: 230V AC, 50 Hz
-
Power Consumption: 30 Watts
🔹 What’s in the Box?
✔️ edose NEO PVDF Pump
✔️ Suction & Discharge Tubing
✔️ Suction Filter with NRV
✔️ Anti-Siphon Valve
✔️ Mounting Bolts
✔️ O&M Manual
⏳ Warranty: 1 Year Against Manufacturing Defects
🚀 Upgrade to the edose NEO PVDF Dosing Pump for unmatched reliability in aggressive chemical dosing!
product code : SIE20250331110
