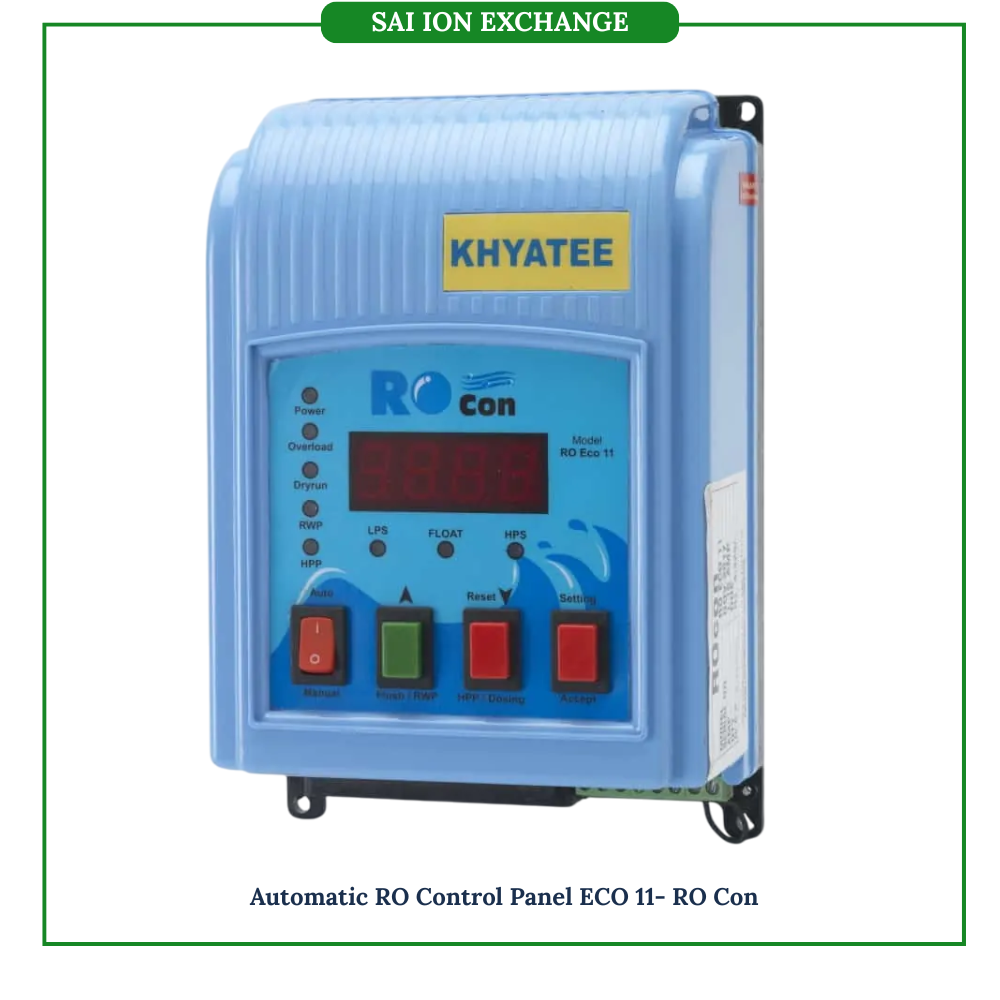

Automatic RO Control Panel ECO 11- RO Con

Description

🌊 Automatic RO Control Panel ECO 11 – RO Con

✅ Microcontroller-Based RO Control Panel with Auto Fault Detection & Reliable Performance

🔹 Product Overview:

The RO Control Panel ECO 11 – RO Con is a microcontroller-based digital panel designed for industrial & commercial RO plants. It offers auto fault detection, precise control, and reliable protection against dry run, overload, and voltage fluctuations.

✅ Key Features & Benefits:

• 🔹 Microcontroller-Based Technology:

  • Ensures accurate performance and long-lasting durability.

• 🔹 Pre-Programmed RO Logic:

  • Factory-configured settings for easy plug-and-play installation.

• 🔹 User-Friendly Display & Indicators:

  • 16 x 2 Alphanumeric LCD with mimic diagram.

  • 15 LED indicators for clear I/O status visualization.

• 🔹 Easy Programming with Dome Keys:

  • 4-dome keys for quick parameter setting (20+ adjustable parameters).

• 🔹 Comprehensive Fault Detection & Protection:

  • Auto-fault detection for easy maintenance.

  • Protection against:

    • ✅ Dry running

    • ✅ Overload

    • ✅ Extreme high current

• 🔹 In-Panel Calibration Options:

  • Voltage, current & conductivity calibration for precise monitoring.

• 🔹 Auto-Flushing Function:

  • Improves membrane efficiency and prolongs its lifespan.

• 🔹 Compact & Durable Design:

  • Rust-proof ABS casing: compact, vermin-proof & corrosion-resistant.

⚙️ I/O & Sensor Integration:

• 🔹 Input Connections:

  • LPS – Low Pressure Switch

  • HPS – High Pressure Switch

  • Float Switch – For water level control

• 🔹 Output Connections:

  • RWP – Raw Water Pump

  • HPP – High Pressure Pump

  • Dosing Pump – For chemical dosing

• 🔹 Protection Features:

  • Dry run & overload protection for both RWP & HPP.

  • High current protection for added safety.

⚙️ Specifications:

• 🔹 Input Voltage:

  • 200-300 VAC 50Hz

• 🔹 Current Supply Range:

  • 1-22 Amps

• 🔹 Motor Capacity:

  • Up to 2 HP for RWP

  • Up to 2 HP for HPP

• 🔹 Overload Protection:

  • 1-22A wide range (default: 4A for RWP & HPP)

• 🔹 Dry Run/No Load Current:

  • 1-22A (default: OFF for RWP & HPP)

• 🔹 RWP Dry Run Trip Time Delay:

  • 01-180 sec range (default: 180 sec)

• 🔹 RWP Overload Trip Time Delay:

  • 01-30 sec range (default: 15 sec)

• 🔹 HPP Dry Run Trip Time Delay:

  • 01-180 sec range (default: 180 sec)

• 🔹 HPP Overload Trip Time Delay:

  • 01-30 sec range (default: 15 sec)

• 🔹 HPP ON/OFF Timer:

  • ON: 1-99 sec (default: 15 sec)

  • OFF: 01-99 sec (default: 15 sec)

• 🔹 Dry Run Auto-Start Timer for RWP:

  • 05-720 min (default: OFF)

• 🔹 Auto-Flushing Valve ON Time:

  • 05-100 sec (default: 15 sec)

• 🔹 Flush Timer:

  • 02-120 sec range (default: 60 sec)

• 🔹 Flush Delay:

  • 05-720 min range (default: OFF)

• 🔹 Conductivity Ignore Time:

  • 01-60 min (default: 2 min)

• 🔹 Power-On Timer:

  • 01-300 sec range (default: 60 sec)

💡 Applications:

• 🌊 Industrial & Commercial RO Plants:

  • Ensures reliable & stable performance for water purification.

• 🏭 Water Treatment Plants:

  • Protects pumps & prevents downtime with auto-fault detection.

• 💧 Bottled Water Production Plants:

  • Enhances system reliability with precise control & protection.

• ⚙️ Industrial Water Purification Units:

  • Reduces maintenance with auto-flushing & fault detection.

🚀 Why Choose the RO Control Panel ECO 11 – RO Con?

✔️ Reliable & Efficient:

• Microcontroller-based for stable & precise control.
  ✔️ Comprehensive Protection:

• Prevents damage from dry run, overload & high current.
  ✔️ User-Friendly Interface:

• LCD display & LED indicators for real-time monitoring.
  ✔️ Compact & Durable Design:

• Rust-proof ABS casing ensures long-lasting durability.
  ✔️ Auto-Flushing Function:

• Increases membrane efficiency & lifespan.
  ✔️ Plug & Play Convenience:

• Factory-configured parameters for easy installation.

product code : SIE2025032857
