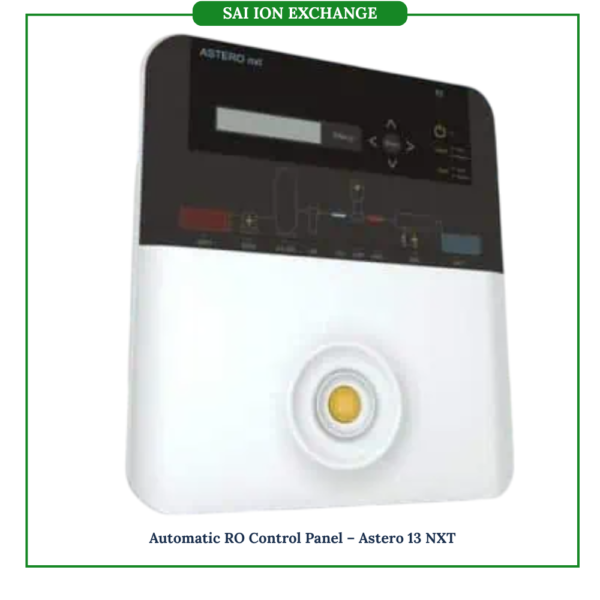

Automatic RO Control Panel – Astero 13 NXT

Description

⚙️ Automatic RO Control Panel – Astero 13 NXT (Embark)

✅ Advanced Microprocessor-Based Plug & Play Controller for Complete RO Automation

🔹 Product Overview:

The Astero 13 NXT is a compact, pre-programmed, microprocessor-based RO control panel designed for automating water treatment plants. It offers complete RO logic, built-in motor protection, and automated flushing cycles, ensuring efficient and safe plant operation.

Equipped with a 16×2 alphanumeric LCD display, it provides real-time plant status, flow rates, and conductivity/TDS readings. The panel includes fault protection, service notifications, and password-protected settings, making it ideal for industrial and commercial RO systems.

✅ Key Features & Benefits:

• 🔹 Pre-Programmed RO Logic:

  • Plug & Play operation with complete RO logic pre-installed.

• 🔹 Mimic Diagram with 6 LEDs:

  • Clear visual representation of I/O status.

• 🔹 16×2 Alphanumeric LCD Display:

  • Real-time monitoring with a user-friendly keypad interface.

• 🔹 Automated Flushing Cycle:

  • Flushes the membrane:

    • During start-up

    • During shutdown

    • At preset intervals

  • Prevents scaling and extends membrane life.

• 🔹 Filter Backwash & Service Notifications:

  • Alerts for filter backwash and plant service due based on actual runtime.

• 🔹 Time-Settable Lock:

  • Prevents frequent pump cycling and ensures stable operation.

• 🔹 Motor Protection Features:

  • Safeguards against:

    • ✅ Overload

    • ✅ Single Phasing

    • ✅ Dry Running

• 🔹 Auto/Manual Operation:

  • Operates in manual mode with motor protection still active.

• 🔹 Flow Rate Indicator with Totalizer:

  • Real-time flow measurement with cumulative totalizer.

• 🔹 Operation Hour Counter:

  • Tracks the plant’s runtime for maintenance planning.

• 🔹 Conductivity/TDS Indicator with Tripping:

  • In-built conductivity/TDS sensor with auto-tripping on high levels.

• 🔹 Auto-Multiport Valve Compatibility:

  • Equipped to control auto-multiport valves in pretreatment.

• 🔹 Password-Protected Settings:

  • Prevents unauthorized access and accidental modifications.

⚙️ Specifications:

• 🔹 Model: Astero 13 NXT (Embark)

• 🔹 Input Voltage: 230 VAC

• 🔹 Output for Raw Water Pump (RWP):

  • Single Phase – 1.5 KW

• 🔹 Output for High-Pressure Pump (HPP):

  • Three Phase – 4 KW

• 🔹 Display:

  • 16×2 Alphanumeric LCD display with keypad for programming

• 🔹 Motor Protection:

  • Overload, Single Phasing & Dry Running Protection

• 🔹 Flow Rate Indicator:

  • Real-time flow monitoring with totalizer

• 🔹 Conductivity/TDS Indicator:

  • Auto-tripping on high TDS levels

• 🔹 Notifications:

  • Filter backwash & service due alerts

• 🔹 Wiring:

  • Larger power terminals for easy wiring

  • Removable input terminals for simplified connections

💡 Applications:

• 🌊 RO Water Treatment Plants:

  • Ideal for industrial & commercial RO systems.

• 🏭 Industrial Water Treatment:

  • Ensures smooth & reliable operation.

• 💧 Commercial RO Plants:

  • Automates & protects the entire system.

• 🛠️ Water Purification Units:

  • Improves efficiency & safety.

🚀 Why Choose Astero 13 NXT?

✔️ Pre-Programmed RO Logic:

• Plug & Play setup with complete automation.
  ✔️ Real-Time Monitoring:

• Flow rate, runtime, and TDS readings displayed clearly.
  ✔️ Automated Flushing:

• Enhances membrane lifespan with periodic flushing.
  ✔️ Fault Protection:

• Safeguards against overload, phasing issues & dry running.
  ✔️ User-Friendly Interface:

• Easy-to-navigate display with password protection.
  ✔️ Service Notifications:

• Timely alerts for backwash & service due.
  ✔️ Compact & Durable:

• Robust design with easy wiring & installation.

product code : SIE2025032842
