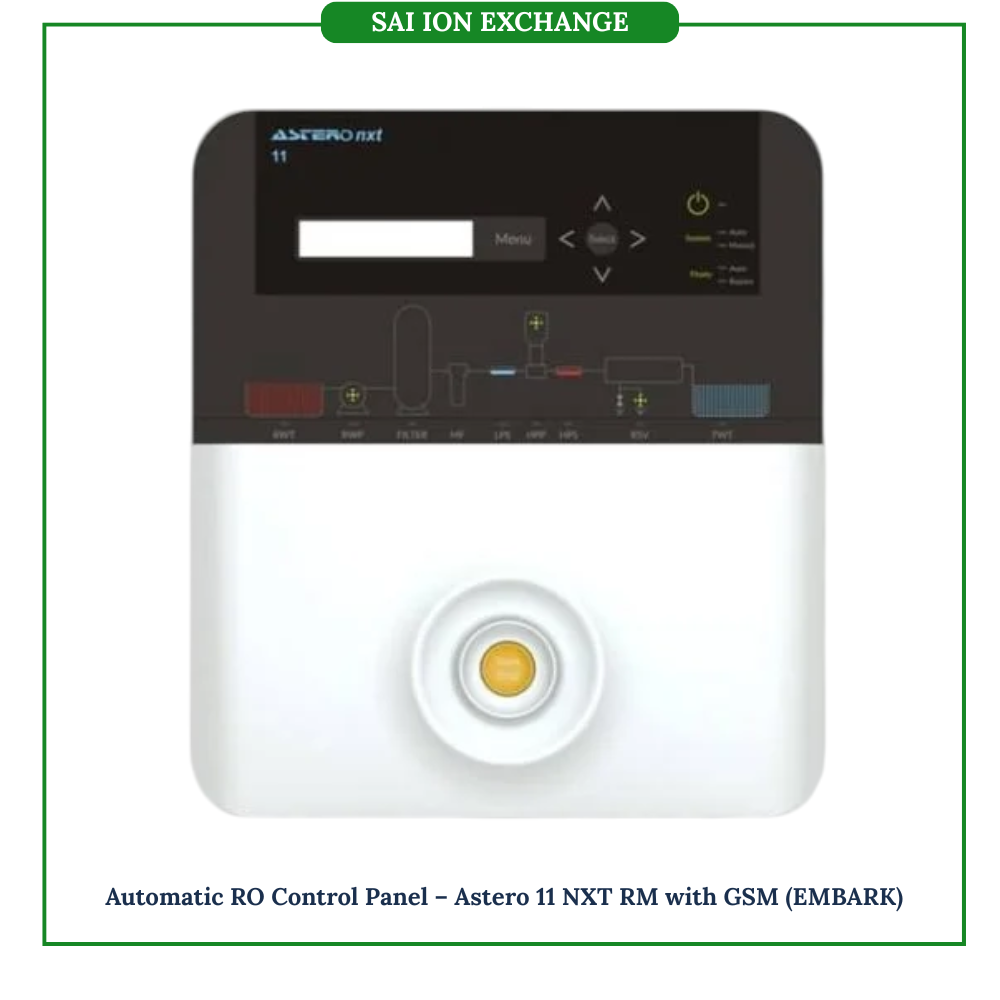

Automatic RO Control Panel – Astero 11 NXT RM with GSM (EMBARK)

Description

⚙️ Automatic RO Control Panel – Astero 11 NXT RM with GSM (EMBARK)

✅ Smart, Flexible & Programmable RO Controller with Remote Monitoring via GSM

🔹 Product Overview:

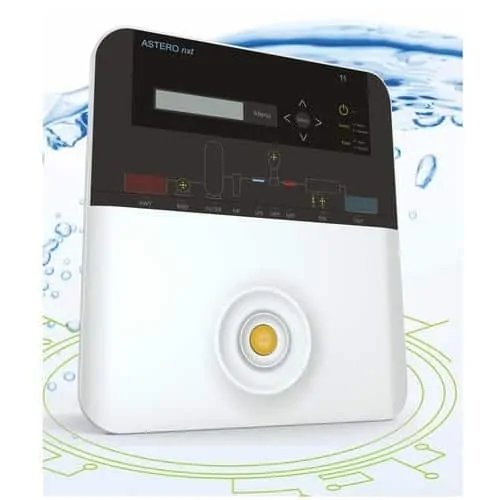

The Astero 11 NXT RM (Embark) is a next-gen microprocessor-based control panel designed for automation of water treatment systems. It features an intuitive, patented interface, color-coded backlit display, and built-in motor protection, ensuring safe and efficient plant operation.

With in-built GSM connectivity, this panel allows remote monitoring and control via SMS alerts, providing real-time plant status updates and fault notifications to up to 3 mobile numbers. It also includes an RS485 communication port for remote data access.

✅ Key Features & Benefits:

• 🔹 GSM Connectivity:

  • Remote monitoring via SMS alerts.

  • Sends plant status and trip alerts to up to 3 mobile numbers.

  • User-settable SMS frequency and contact numbers.

• 🔹 Intuitive Patented Interface:

  • User-friendly navigation for simplified settings.

• 🔹 13-Key Control Panel:

  • Quick access to critical settings and operations.

• 🔹 Logical START/STOP Function:

  • One-touch START/STOP button for simplified control.

• 🔹 Color-Coded Backlit Display:

  • 16×2 alphanumeric display with color-changing backlit based on plant status.

• 🔹 Single-Line Mimic Diagram with 13 LEDs:

  • Clear visual indicators for Input/Output status.

• 🔹 Filter Backwash & Service Notifications:

  • Automatic alerts for filter backwash and service due.

• 🔹 Time Lock Facility:

  • Prevents frequent pump cycling, extending pump life.

• 🔹 Fuse Failure Indication:

  • Quick troubleshooting with failure notifications.

• 🔹 Larger Power Terminals:

  • 6 Sq. mm terminals for secure and easy wiring.

• 🔹 Removable Terminals:

  • Simplifies installation with removable input connections.

• 🔹 Automated Membrane Flushing:

  • Flushes membrane during startup, shutdown & set intervals to extend membrane life.

• 🔹 Motor Protection Features:

  • Guards against:

    • Overload

    • Single phasing

    • Dry running

• 🔹 Auto/Manual Operation:

  • Operates in manual mode with motor protection still active.

• 🔹 Auto-Multiport Valve Compatibility:

  • Compatible with auto multiport valves in pretreatment systems.

• 🔹 In-Built Voltage Protection:

  • Protects against over & under-voltage fluctuations.

• 🔹 RS485 Communication Port:

  • Enables remote data monitoring.

📡 GSM Remote Monitoring:

✅ In-Built Modem:

• Transfers data through SMS alerts.

• Compatible with SIM cards from any telecom service provider.

✅ SMS Alerts Sent to Up to 3 Mobile Numbers:

• User-configurable mobile numbers & SMS frequency.

• Provides real-time plant status with the following parameters:

  • 🌊 Conductivity/TDS

  • 💧 RO Permeate Volume

  • ⏱️ RO Operation Hours

  • ⚡ High-Pressure Pump Current

  • 🚿 RO Permeate & Inlet Flow Rates

  • 🔥 Feed Pump Current

  • 🔧 Overall Plant Status

✅ Fault & Alert Messages:

• Automatically trips the plant and sends SMS alerts for the following faults:

  • ⚠️ High Conductivity/TDS

  • ⚠️ Low Pressure Trip

  • ⚠️ Treated Water Tank Full

  • ⚠️ RWP Dry Running, Single Phasing & Overload

  • ⚠️ HPP Dry Running, Single Phasing & Overload

  • ⚠️ Dosing Tank Level Low

  • ⚠️ Over/Under Voltage Trip

✅ User-Settable Alert Frequency:

• Set SMS frequency and customize mobile numbers through SMS commands.

⚙️ Specifications:

• 🔹 Model: Astero 11 NXT RM (Embark) with GSM

• 🔹 Input Voltage: 230 VAC

• 🔹 Output for Raw Water Pump (RWP):

  • Single Phase – 1.5 KW

• 🔹 Output for High-Pressure Pump (HPP):

  • Single Phase – 2 KW

• 🔹 Display:

  • 16×2 Alphanumeric Display with color-coded backlit

• 🔹 Motor Protection:

  • Overload, Single Phasing & Dry Running Protection

• 🔹 Connectivity:

  • GSM Modem for remote SMS alerts

  • RS485 communication port for remote monitoring

• 🔹 Wiring:

  • Larger power terminals (6 sq. mm) for easy wiring

  • Removable terminals for simplified input connections

📱 GSM SMS Alert Features:

• ✅ Real-Time Monitoring:

  • Get plant status updates on mobile.

• ✅ Fault Notifications:

  • Receive alerts for trips & errors.

• ✅ Multiple Recipients:

  • Sends messages to up to 3 mobile numbers.

• ✅ User-Configurable:

  • Set frequency & mobile numbers via SMS.

💡 Applications:

• 🌊 RO Water Treatment Plants:

  • Enables remote monitoring & fault detection.

• 🏭 Industrial Water Treatment:

  • Ideal for large-scale RO systems.

• 🛠️ Commercial RO Units:

  • Improves efficiency & reliability.

• 🏠 Residential Water Purification Systems:

  • Ensures smooth & consistent operation.

🚀 Why Choose Astero 11 NXT RM with GSM?

✔️ Remote Monitoring:

• Get real-time plant status & fault alerts via SMS.
  ✔️ User-Friendly Interface:

• Quick access to critical settings with intuitive navigation.
  ✔️ Real-Time Notifications:

• Instant SMS alerts for faults, flow rates & plant status.
  ✔️ Smart Display:

• Color-coded backlit display for easy status identification.
  ✔️ Motor Protection:

• Safeguards against voltage fluctuations, overload & dry running.
  ✔️ Automated Flushing:

• Enhances membrane lifespan.
  ✔️ Easy Installation:

• Removable terminals & larger power connections for simplified wiring.

product code : SIE2025032841
