Automatic RO Control Panel – Astero 11 NXT (EMBARK)

Description

⚙️ Automatic RO Control Panel – Astero 11 NXT (EMBARK)

✅ Smart, Flexible, and Programmable RO Controller with Advanced Features

🔹 Product Overview:

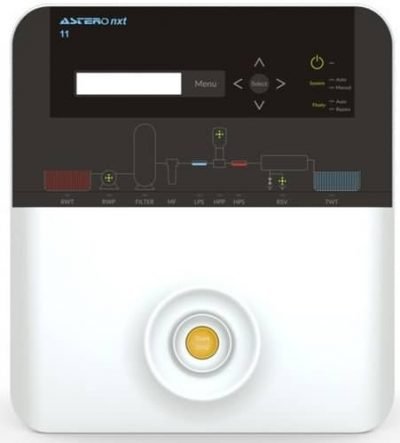

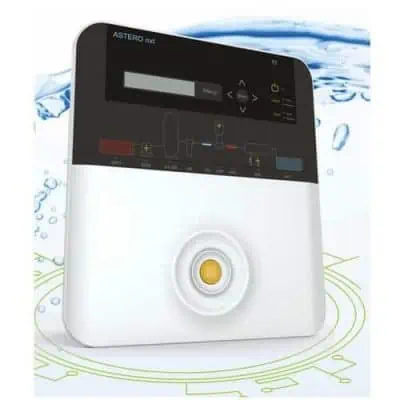

The Astero 11 NXT by Embark is a compact, microprocessor-based RO control panel designed for the automation of water treatment systems. It features a patented, intuitive interface with an alphanumeric display, LED indicators, and built-in motor protection for safe and efficient plant operation. With optional Bluetooth® connectivity and RS485 communication, it offers remote monitoring and data transfer capabilities.

✅ Key Features & Benefits:

• 🔹 Intuitive Patented Interface:

  • User-friendly design for simplified operation and quick access to settings.

• 🔹 13-Key Control Panel:

  • Makes settings and adjustments faster and easier.

• 🔹 Logical START/STOP Function:

  • One-touch START/STOP button for efficient control.

• 🔹 Color-Coded Backlit Display:

  • The 16×2 alphanumeric display changes colors based on the plant status for easy monitoring.

• 🔹 Single-Line Mimic Diagram with 13 LEDs:

  • Clear visual indications for Input/Output status.

• 🔹 Filter Backwash & Service Notifications:

  • Alerts for filter backwash and plant service due, ensuring regular maintenance.

• 🔹 Time Lock Facility:

  • Prevents frequent starts/stops, enhancing pump longevity.

• 🔹 Fuse Failure Indication:

  • Ensures easy identification of fuse issues for quick troubleshooting.

• 🔹 Larger Power Terminals:

  • 6 Sq. mm terminals for easy and secure wiring.

• 🔹 Removable Terminals:

  • Simplifies installation with easy terminal removal.

• 🔹 Automated Membrane Flushing:

  • Flushes the membrane during startup, shutdown, and set intervals to extend membrane life.

• 🔹 Motor Protection Features:

  • Prevents damage from:

    • Overload

    • Single phasing

    • Dry running

• 🔹 Auto/Manual Operation:

  • Operates in manual mode with motor protection still active.

• 🔹 Auto-Multiport Valve Compatibility:

  • Compatible with auto multiport valves in pretreatment systems.

• 🔹 In-Built Voltage Protection:

  • Safeguards against over and under-voltage fluctuations.

• 🔹 RS485 Communication Port:

  • Enables remote data monitoring.

• 🔹 Optional Bluetooth Connectivity:

  • Pairs with Android mobile devices for data monitoring and transfer.

  • ⚠️ Bluetooth module sold separately.

⚙️ Specifications:

• 🔹 Model: Astero 11 NXT (Embark)

• 🔹 Input Voltage: 230 VAC

• 🔹 Output for Raw Water Pump (RWP):

  • Single Phase – 1.5 KW

• 🔹 Output for High-Pressure Pump (HPP):

  • Single Phase – 2 KW

• 🔹 Display:

  • 16×2 Alphanumeric Display with color-changing backlit

• 🔹 Motor Protection:

  • Overload, Single Phasing & Dry Running Protection

• 🔹 Connectivity:

  • RS485 communication for remote monitoring

  • Bluetooth (Optional) for data monitoring & transfer

• 🔹 Wiring:

  • Larger power terminals (6 sq. mm) for easy wiring

  • Removable terminals for simplified input connections

💡 Applications:

• 🌊 RO Water Treatment Plants:

  • Automates plant operations with remote monitoring capabilities.

• 🏭 Industrial Water Treatment:

  • Ideal for small to mid-scale RO systems.

• 🛠️ Commercial RO Units:

  • Enhances reliability and safety with advanced motor protection.

• 🏠 Residential Water Purification Systems:

  • Ensures smooth and efficient plant operation.

🚀 Why Choose Astero 11 NXT?

✔️ User-Friendly Interface: Intuitive, patented interface for easy navigation.
✔️ Smart Display: Color-coded backlit display for quick status identification.
✔️ Remote Monitoring: RS485 port for remote data access.
✔️ Bluetooth Option: Wireless monitoring and data transfer.
✔️ Advanced Motor Protection: Prevents damage from voltage issues, overload, and dry running.
✔️ Automated Flushing: Enhances membrane lifespan.
✔️ Service Notifications: Alerts for backwash and service due, ensuring regular maintenance.

product code : SIE20250320839
