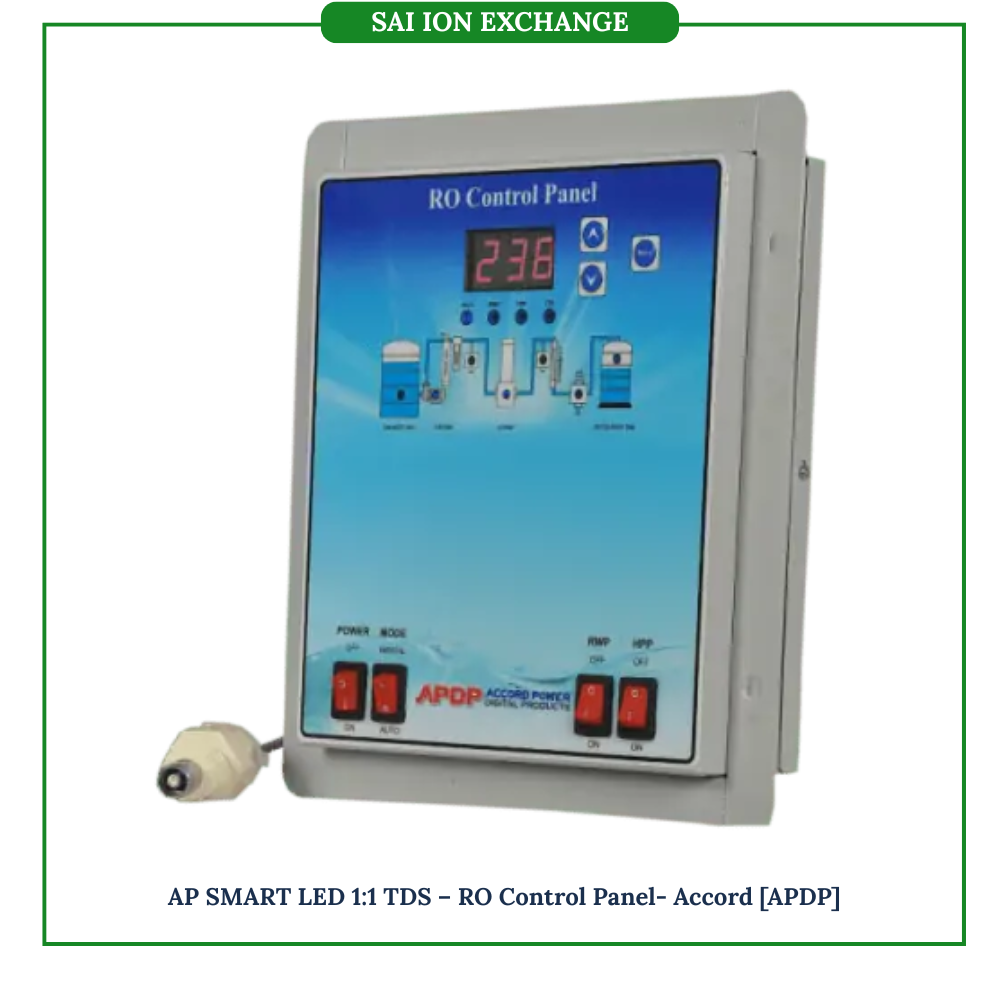

AP SMART LED 1:1 TDS – RO Control Panel- Accord [APDP]

Description

⚡ AP SMART LED 1:1 TDS – RO Control Panel

✅ Advanced RO Controller with Real-Time Monitoring & Protection

🔹 Product Overview:

The AP SMART LED 1:1 TDS RO Control Panel by Accord [APDP] is designed using microcontrollers, providing intelligent solutions for water treatment plants. It offers real-time monitoring of essential parameters like voltage, TDS, and pump amps, along with automatic protection features for efficient and safe plant operation.

✅ Key Features:

• 🔹 3-Digit Seven-Segment Display:

  • Displays Voltage, TDS, and AMPS of both:

    • Raw Water Pump (RWP)

    • High-Pressure Pump (HPP)

• 🔹 Mimic Diagram with 6 LED Indicators:

  • Real-time status display for:

    • Low Pressure Switch (LPS) & High Pressure Switch (HPS)

    • Pump Running Status

    • Water Levels

• 🔹 Float Sensors for Water Tanks:

  • Monitors and controls:

    • Raw Water Tank (RWT)

    • Treated/Pure Water Tank (TWT)

• 🔹 Pump AMPs Cut-Off Protection:

  • Automatic cut-off for RWP & HPP based on current overload, preventing damage.

• 🔹 AC Voltage Protection:

  • Protects pumps from low and high voltage fluctuations.

• 🔹 Auto Flushing & Flush Cycle Setting:

  • Ensures regular cleaning of the RO membrane, enhancing its lifespan.

• 🔹 TDS & Conductivity Monitoring:

  • Displays real-time TDS values, ensuring water quality compliance.

• 🔹 Pump & Accessory Control:

  • Supplies and controls:

    • UV Unit

    • Solenoid Valve (SV)

    • Dosing Pump

• 🔹 Manual Mode Backup:

  • Even if any PCB electronics fail, the RO plant can still run in manual mode.

⚙️ Technical Specifications:

• 🔹 Model: AP SMART LED 1:1 TDS

• 🔹 Brand: Accord [APDP]

• 🔹 Display:

  • Voltage: 3-digit seven-segment display

  • TDS & Conductivity: Real-time monitoring

  • AMPS: RWP & HPP current display

• 🔹 Protection:

  • Low/High Voltage Protection

  • AMP Cut-Off for RWP & HPP

• 🔹 Connections:

  • Raw Water Pump (RWP)

  • High-Pressure Pump (HPP)

  • Dosing Pump, UV Unit, and Solenoid Valve (SV)

• 🔹 Backup Mode: Manual operation in case of PCB failure

💡 Applications:

• 🌊 Industrial RO Plants:

  • Suitable for small to medium-scale water treatment plants.

• 🏢 Commercial Water Treatment:

  • Ensures consistent TDS levels and system protection.

• 🚰 Water Purification Units:

  • Reliable for continuous water purification operations.

🚀 Why Choose AP SMART LED 1:1 TDS Control Panel?

✔️ Real-Time Monitoring: Displays TDS, voltage, and amps instantly.
✔️ Enhanced Protection: Automatic voltage & pump protection prevents equipment damage.
✔️ Auto Flushing: Extends membrane lifespan by regular flushing cycles.
✔️ Failsafe Manual Mode: Even with PCB failure, the system continues running.
✔️ User-Friendly Interface: LED indicators and clear display for easy operation.

product code : SIE2025032836
