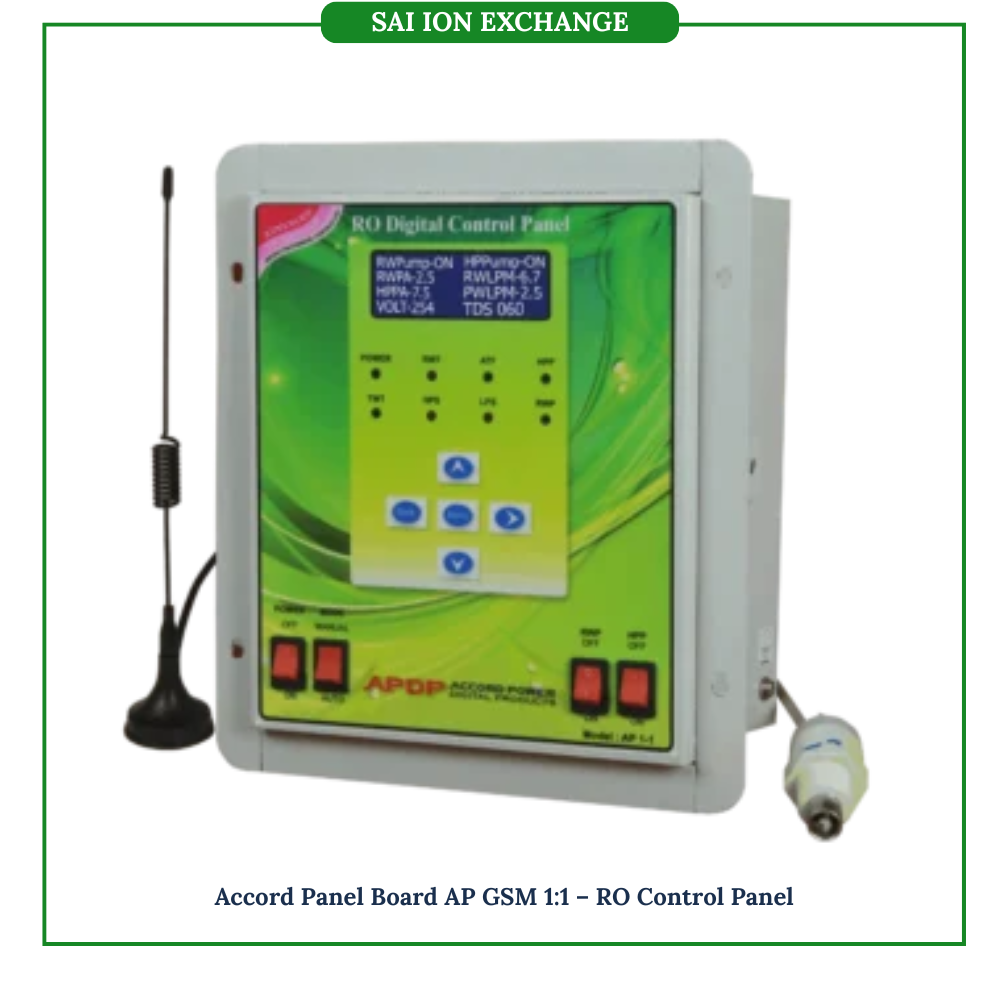

Accord Panel Board AP GSM 1:1 – RO Control Panel

Description

🌟 Accord AP 1:1 GSM – RO Control Panel

✅ Advanced Automation with Real-Time GSM Monitoring & Control

🔹 Product Overview:

The Accord AP 1:1 GSM RO Control Panel is a state-of-the-art microcontroller-based solution designed for intelligent and remote management of RO plants. With GSM connectivity, it enables real-time monitoring, control, and fault alerts directly to your mobile phone, Android app, and web interface. Enhance operational efficiency, reliability, and convenience with this next-generation control panel.

✅ Key Features:

• 📊 4-Line LCD Display:

  • Displays real-time plant data including treated and reject water flow.

• 🔹 Flow Sensor Integration:

  • Connects to two flow sensors to monitor both treated and reject water output.

  • Auto pulse setting based on RO plant capacity for accurate readings.

• ⚙️ Auto & Manual Pump Control:

  • Seamless switching between automatic and manual modes for raw water and high-pressure pumps.

• ⚡ Voltage Protection:

  • Protects pumps from AC low and high voltage fluctuations to prevent damage.

• 🔁 Auto Flushing Cycle:

  • Configurable flush cycles extend membrane life and maintain performance.

• 🌊 Tank Float Integration:

  • Supports Raw Water Tank, Dosing Tank, and Treated Water Tank floats for water level management.

• 🔥 Pressure Switches:

  • Includes Low Pressure Switch (LPS) and High Pressure Switch (HPS) for pump safety.

• 🔹 TDS & Conductivity Monitoring:

  • Real-time measurement of TDS and conductivity ensures water quality.

• 🔥 Multi-Port Valve Compatibility:

  • Works with all major auto multi-port valve brands.

• 💡 Comprehensive Control:

  • Supplies and controls UV, solenoid valves (SV), and dosing pumps.

• 🔥 8 LED Indicators:

  • Displays operational statuses:

    • Power On

    • Raw Water Tank Empty

    • Auto Flush in Progress

    • Raw Water Pump (RWP) On

    • High Pressure Pump (HPP) On

    • Treated Water Tank (TWT) Full

    • LPS & HPS Failure Alerts

• 🔐 Password Protection:

  • Prevents unauthorized access and modifications.

• ⚙️ Factory Reset Option:

  • Restores default factory settings for quick troubleshooting.

• 🔹 Fail-Safe Manual Mode:

  • In case of PCB failure, the RO plant continues running in manual mode.

📶 GSM Features:

• 🌐 Real-Time Monitoring:

  • GSM connectivity sends data to the web, Android app, and two mobile phones.

• 📲 Remote Control via App & Mobile:

  • Control all RO plant functions remotely.

• 🔹 Periodic Parameter Reports:

  • Sends data at pre-set intervals, including:

    • Unit Number

    • Today’s RO Water Production (Liters)

    • Treated & Reject Water Flow Rates

    • RO Work Hours

    • Voltage Levels

    • Raw & High-Pressure Pump AMPs

    • TDS Levels

    • GSM Signal Strength

• ⚠️ Immediate Fault Alerts:

  • Sends instant SMS notifications for faults:

    • Under/Over Voltage Trip

    • Low Pressure Trip

    • High Pressure Trip

    • Treated Water Tank Full

    • Dosing Tank Empty

    • Raw Water Pump Overload

    • High-Pressure Pump Overload

⚙️ Technical Specifications:

• 🔹 Product: Automatic RO Controller

• 🔹 Brand: Accord [APDP]

• 🔹 Model: AP 1:1 GSM

• 🔹 Raw Water Pump: Supports up to 3 HP

• 🔹 High-Pressure Pump: Supports up to 3 HP

• 🔹 Protection & Connections:

  • LPS & HPS: Low & High Pressure Switches

  • Tank Floats: Raw Water Tank, Treated Water Tank, and Dosing Tank

  • Auto Multi-Port Valve compatibility

• 🔹 Connections:

  • Raw Water Pump

  • High-Pressure Pump

  • Dosing Pump

  • Flushing Solenoid Valve (SV)

  • UV Control

• 🔹 Warranty: One Year against manufacturing defects

💡 Benefits of the Accord AP 1:1 GSM RO Control Panel:

• 🌐 Remote Monitoring & Control:

  • Real-time status and fault alerts to your phone and app, ensuring quick response.

• ⚙️ Enhanced Automation:

  • Microcontroller technology offers precise plant control and efficiency.

• 📊 Real-Time Flow & TDS Data:

  • Displays accurate readings of TDS, conductivity, and flow rates.

• 🔥 Voltage Protection:

  • Shields pumps from voltage fluctuations, extending their lifespan.

• 🔁 Auto Flushing:

  • Improves membrane performance and increases longevity.

• 🔒 Secure & Reliable:

  • Password protection prevents unauthorized changes.

• 🛠️ Fail-Safe Manual Mode:

  • Ensures continuous operation during PCB failures.

🌐 Applications:

• 💧 Industrial RO Plants:

  • Ideal for large-scale water treatment systems.

• 🏭 Commercial RO Systems:

  • Ensures reliable performance in commercial filtration units.

• 🛢️ Water Bottling Plants:

  • Perfect for high-volume purification operations.

• 🌊 Effluent & Wastewater Treatment:

  • Suitable for industrial wastewater management.

🚀 Why Choose the Accord AP 1:1 GSM RO Control Panel?

✔️ Real-Time GSM Monitoring & Remote Control
✔️ Immediate Fault Alerts to Mobile & App
✔️ Comprehensive TDS & Flow Data Reporting
✔️ Advanced Microcontroller Automation
✔️ Fail-Safe Manual Operation During PCB Failures
✔️ Password Protection & Factory Reset Option

product code : SIE2025032829
