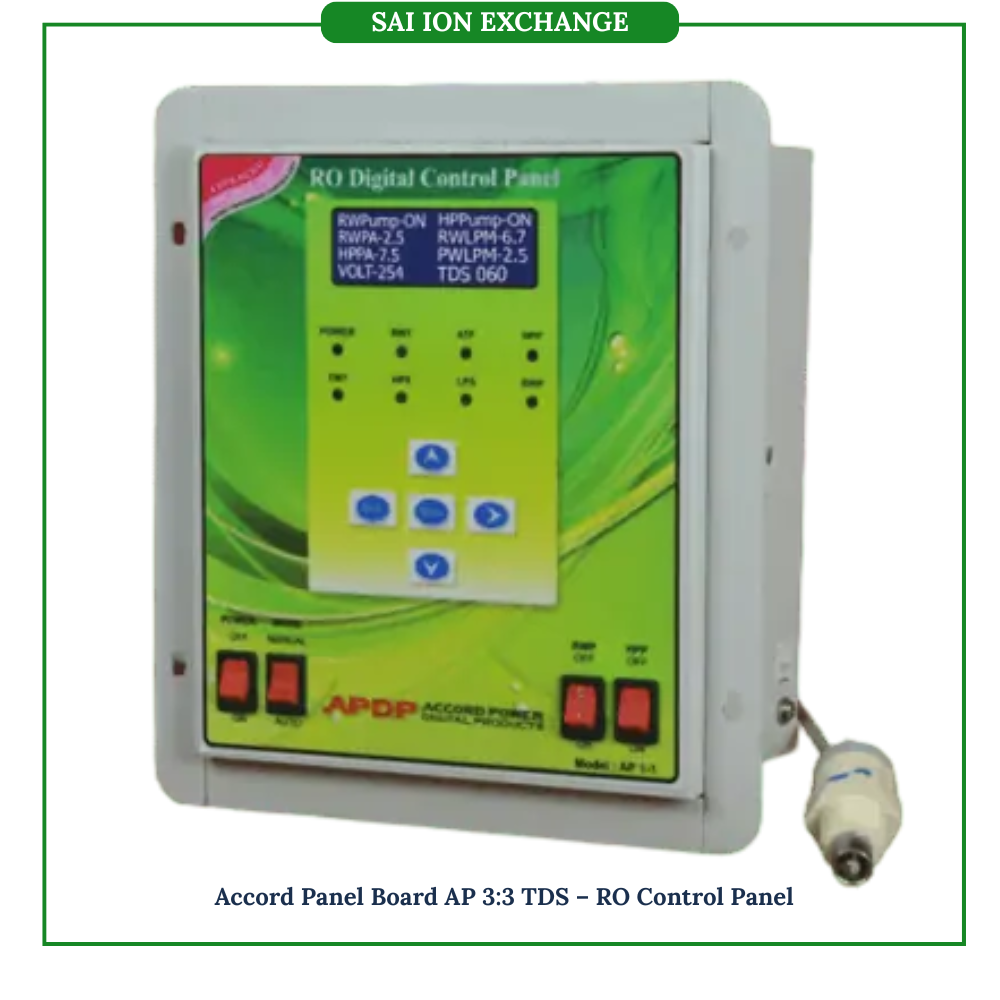

Accord Panel Board AP 3:3 TDS – RO Control Panel

Description

🌟 Accord AP 3:3 TDS – RO Control Panel

✅ Smart, Reliable & Advanced RO Plant Management Solution

🔹 Product Overview:

The Accord AP 3:3 TDS RO Control Panel is an intelligent microcontroller-based solution designed to optimize and automate water treatment plant operations. With 3-phase voltage monitoring, real-time data display, and comprehensive pump protection, this panel enhances efficiency, safety, and performance in your RO system.

✅ Key Features:

• 📊 4-Line LCD Display:

  • Shows real-time plant data, including treated and reject water flow.

• 🔹 Flow Sensor Integration:

  • Connects to two flow sensors to monitor both treated and reject water output.

  • Auto pulse setting based on RO plant capacity ensures accurate readings.

• ⚙️ 3-Phase Voltage Monitoring:

  • Protects against unbalanced AC voltages (RYB phase), preventing pump damage.

• 💧 Auto & Manual Pump Control:

  • Effortless switching between automatic and manual modes for raw water and high-pressure pumps.

• ⚡ Voltage Protection:

  • AC low and high-voltage protection ensures pump safety and durability.

• 🔁 Auto Flushing Cycle:

  • Adjustable flushing cycles improve membrane performance and extend lifespan.

• 🌊 Tank Float Integration:

  • Supports Raw Water Tank, Dosing Tank, and Treated Water Tank floats for efficient water level management.

• 🔥 Pressure Switches:

  • Includes Low Pressure Switch (LPS) and High Pressure Switch (HPS) for pump safety.

• 🔹 TDS & Conductivity Monitoring:

  • Real-time measurement of TDS and conductivity levels ensures water quality.

• 🔥 Multi-Port Valve Compatibility:

  • Compatible with all major auto multi-port valve brands, ensuring flexibility.

• 💡 Comprehensive Control:

  • Powers and controls UV, solenoid valves (SV), and dosing pumps.

• 🔥 8 LED Indicators:

  • Displays vital operational statuses:

    • Power On

    • Raw Water Tank Empty

    • Auto Flush in Progress

    • Raw Water Pump (RWP) On

    • High Pressure Pump (HPP) On

    • Treated Water Tank (TWT) Full

    • LPS & HPS Failure Alerts

• 🔐 Password Protection:

  • Prevents unauthorized access and configuration changes.

• ⚙️ Factory Reset Option:

  • Restores default factory settings for quick troubleshooting.

• 🔹 Fail-Safe Manual Mode:

  • In case of PCB failure, the RO plant continues running in manual mode.

⚙️ Technical Specifications:

• 🔹 Product: Automatic RO Controller

• 🔹 Brand: Accord [APDP]

• 🔹 Model: AP 3:3 TDS

• 🔹 Raw Water Pump: Supports up to 5 HP

• 🔹 High-Pressure Pump: Supports up to 5 HP

• 🔹 Protection & Connections:

  • LPS & HPS: Low & High Pressure Switches

  • Tank Floats: Raw Water Tank, Treated Water Tank, and Dosing Tank

  • Auto Multi-Port Valve compatibility

• 🔹 Connections:

  • Raw Water Pump

  • High-Pressure Pump

  • Dosing Pump

  • Flushing Solenoid Valve (SV)

  • UV Control

• 🔹 Warranty: One Year against manufacturing defects

💡 Benefits of the Accord AP 3:3 TDS RO Control Panel:

• ⚡ Enhanced Automation:

  • Intelligent microcontroller technology for precise control and efficiency.

• 🔹 Real-Time Monitoring:

  • Accurate flow, TDS, and conductivity data displayed on a user-friendly LCD screen.

• 🔥 Voltage Protection:

  • Shields pumps from voltage fluctuations, extending their lifespan.

• 🔁 Auto Flushing:

  • Increases membrane life and performance.

• 🔒 Secure Access:

  • Password protection prevents unauthorized modifications.

• 🛠️ Fail-Safe Manual Mode:

  • Ensures continuous operation, even during PCB failures.

🌐 Applications:

• 💧 Industrial RO Plants:

  • Ideal for large-scale water treatment operations.

• 🏭 Commercial RO Systems:

  • Ensures reliable performance in commercial filtration units.

• 🛢️ Water Bottling Plants:

  • Reliable for high-volume water purification operations.

• 🌊 Effluent & Wastewater Treatment:

  • Suitable for industrial effluent and wastewater plants.

🚀 Why Choose the Accord AP 3:3 TDS RO Control Panel?

✔️ Advanced Microcontroller Technology
✔️ Real-Time Flow, TDS & Conductivity Monitoring
✔️ 3-Phase Voltage Monitoring & Protection
✔️ Automatic Flushing for Enhanced Efficiency
✔️ Fail-Safe Manual Operation During PCB Failures
✔️ User-Friendly LCD Display with LED Indicators

product code : SIE2025032828
