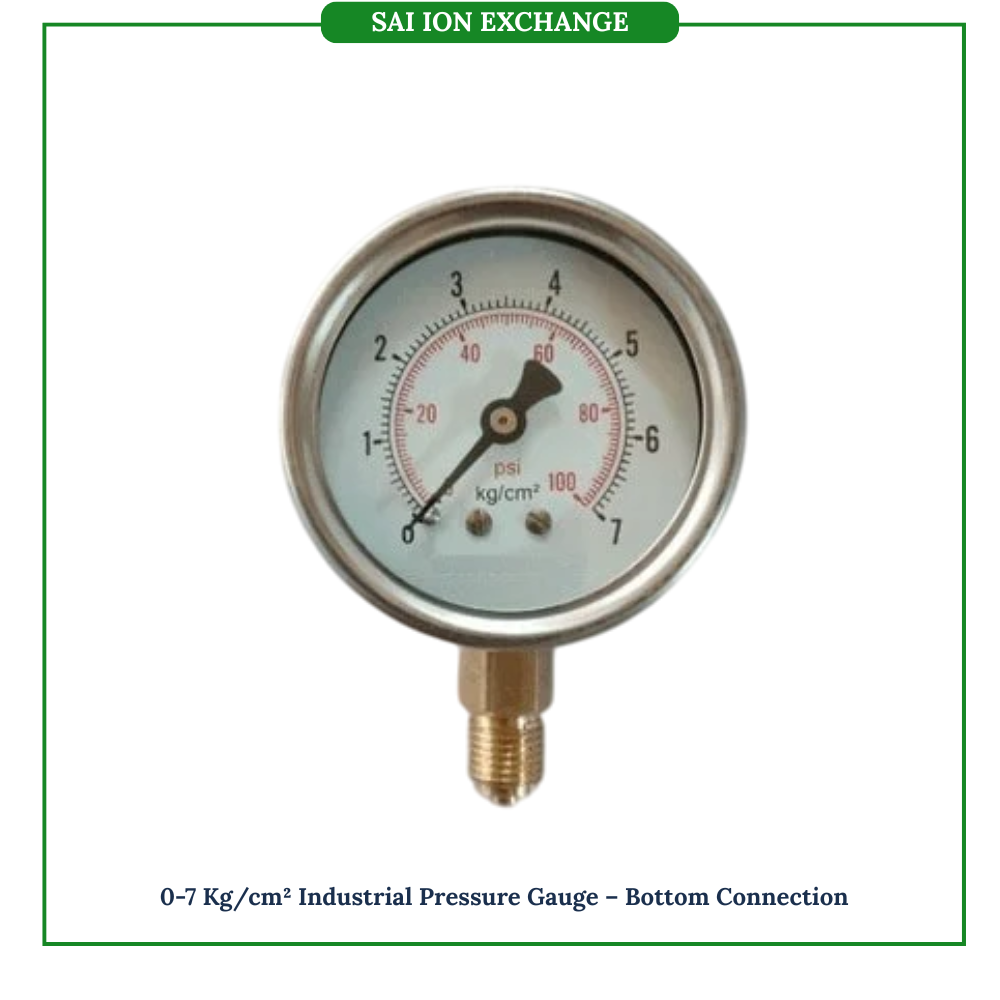

0-7 Kg/cm² Industrial Pressure Gauge – Bottom Connection

Description

🌟 Key Features:

• Rugged Stainless Steel Construction: Built for durability and long-lasting performance in demanding industrial environments.

• Process Connection: 1/4 Inch BSP(M) for secure and accurate installation.

• Welded Socket & Case: Ensures superior leak resistance and enhanced durability.

• Bourdon Tube Measuring Principle: Provides reliable and precise pressure readings.

• Full-Scale Usability: Designed for maximum efficiency, usable up to the full-scale range.

• Glycerin-Filled: Minimizes pointer vibration for steady and accurate readings, even in high-vibration conditions.

• Stainless Steel Measuring System: Corrosion-resistant for extended lifespan in harsh conditions.

• Factory-Calibrated: Ensures precise and accurate measurements out of the box.

🔧 Technical Specifications:

• Type: Glycerin-Filled Pressure Gauge

• Pressure Range: 0 to 7 Kg/cm²

• Mounting: Bottom Connection (Online Installation)

• Connection Size: 1/4″ BSP

• Dial Size: 100 mm (2.5″) – Clear, easy-to-read display

• Material of Construction (MOC) – Case: SS 304 (Stainless Steel) for strength and corrosion resistance

• MOC – Connection: Brass for secure and reliable fittings

• Warranty: 1 Year against manufacturing defects

product code: SIE2025032702
